ECOBOT Scrubber 75

We know exactly what you need: high quality, efficient and cost-effective cleaning.

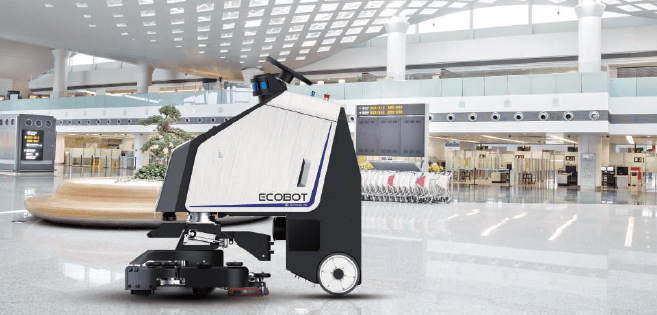

The ECOBOT Scrubber 75 is the first cleaning robot to offer a solution for surfaces that are difficult to clean. Thanks to its revolutionary Tornado technology and the ingeniously designed offset brush head, the robot can get into every corner
and to every edge.

The robot is the ideal choice for both indoor and outdoor areas - parking areas, airports, train stations, shopping centres, supermarkets, manufacturing companies, warehouses or public squares.

Edge-to-edge corner cleaning
A 6-hour LiFePO4 battery
Saves up to 4,000 litres of water per month
An interface for alerts and reports
First-class speed
and performance

Operation

Proven efficiency

The ECOBOT Scrubber 75 is designed to run continuously for up to six hours on just one battery charge, and just one refill of the cleaning fluid. It uses state-of-the-art 4-stage filtration technology to ensure clean, recycled water for its entire operation time.

From the user’s perspective

Smart and easy to use

Nothing can compare to the most advanced technology combined with simplicity. All operators, regardless of age or education, will find our user-friendly interface tablets easy to work with. We asked cleaning service providers around the world to share their experiences to help us in its design.


The application is straightforward with a sophisticated graphical interface and multi-level access. The ECOBOT Scrubber 75 also has rapid mapping, as it navigates a new environment in manual mode it generates a visual and editable map.



Smart messages

There is a cloud-based interface to browse all your robots’ data dashboards and job reports. You can get detailed job reports and alerts sent to you via email or SMS.

Advanced machine learning

Autonomous intelligence

Even the best hardware is only as good as its “brain”. That’s why we have used the latest hardware in conjunction with SLAM technology and designed patented software for it so that the ECOBOT Scrubber 75 always knows exactly which area has been cleaned and which has not.

Improved performance

Safety always comes first for us. The state-of-the-art artificial intelligence technology can detect and recognize static obstacles just 2 centimetres wide and 6 centimetres high. The robot uses a total of 23 sensors that come in four types, including 3D LiDAR. In a single charge (6 hours of operation), it can wash up to 3,000 m² per hour. What’s more, it dynamically plans its route, avoids obstacles in real time and automatically resumes after an interruption.

Workstation

The workstation has been designed to increase the ECOBOT’s work time. The Scrubber 75 automatically docks at the workstation to recharge, discharge dirty water and fill up with clean water again.

Technical specification

DIMENSION (mm)
1370 (L) X 962 (W) X 1417 (H)
CLEANING WIDTH
750 mm
MAXIMUM PRODUCTIVITY
up to 3000 m²/h
BATTERIES
Lithium-ion (LFP)
AVERAGE RUN-TIME
4—6 hodin
MAXIMUM OUTPUT POWER
2000 W
VOLTAGE
24 V
RATED DRIVING MOTOR POWER
400 W
RATED BRUSH MOTOR POWER
3 x 150 W
BRUSH ROTATION SPEED
up to 270 RPM
WATER SUCTION MOTOR POWER
500 W
GROSS WEIGHT OF ECOBOT
400 kg
BATTERY WEIGHT
64 kg
BATTERY CAPACITY
240 Ah
CLEAN WATER TANK
75 litres (4stage filtration)
WASTE WATER TANK
50 litres
SAFETY SYSTEM
Lidar, 3D camera, touch sensor (rear wheel), ultrasonic sensor, colission bumper
MAXIMUM ELEVATION
10°
SPEED
0—4 km/h
MAXIMUM VACUUM
18.18 kPa
NOISE
55—70 dBA
